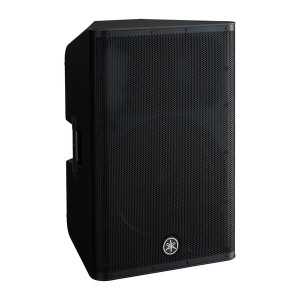

Raw power With a 1100 Watt Class-D amplified design, the Yamaha DXR15mkII 15'' Active PA Speaker is powerful enough for any live environment. An intelligent multi-band compressor calculates level-based EQ adjustments. Ensuring consistent clarity. And with the ability to handle obscene sound pressure levels, you can be confident that the DXR15mkII won't be bested.

Fine-tuned The DXR15mkII is clever enough to give you the best sound possible. Yamaha's innovative FIR-X Tuning intelligently manages frequencies. Combatting phase cancellation, ensuring clarity, and with exceptionally smooth crossover. Meaning you'll always sound exceptional.

Mixed in Getting a great sound couldn't be easier, thanks to the integrated 3-channel mixer. Each channel has its own volume control to balance your sources. Once you've got a great balance, the sound output can be adjusted to different spaces and applications, with easy contouring preset switches.

Versatile design You can use the DXR15mkII in a variety of configurations. For floor monitoring applications, a 50° angle is integrated into the cabinet design for easy placement. Two 35 mm speaker pole mounts let you mount the speaker at an angle of either 0°, or 7°.

Features Register your product with Yamaha and receive an extended 7 year warranty D-contour intelligent multi-band compressor optimises your sound FIR-X tuning crossover stops phase issues in the mid-range 50° monitor angle when laid on the side Two 35 mm speaker pole mounts at 0° and 7° Super efficient class D amplification with 700 watts continuous output Integrated 3 channel mixer lets you easily balance input sources Easy to use presets for different rooms and PA configurations Specifications System type: 2 way, bi-amped, bass reflex powered speaker Frequency range (-10 dB): 49 Hz - 20 kHz Coverage angle: H 90° x V 60° constant directivity horn Crossover type: FIR-X tuning (linear phase FIR filter) Max SPL (peak): 134 dB SPL Transducers Low frequency: Diameter: 15'' cone Voice coil: 2.5'' Magnet: Ferrite High frequency: Voice coil: 1.75'' Diaphragm: PET Type: 1'' throat compression driver Magnet: Neodymium Enclosure Material, finish, colour: ABS, matte black Floor monitor angle: 50° Symmetrical Dimensions (WxHxD): 445 x 700 x 380 mm Net weight: 21.8 kg Pole socket: 35 mm x 2 (0° or 7°) Rigging points: Top x 2, Rear x 1, fits for M10 eyebolts Amplifier Amplifier type: Class-D Dynamic power rating: 1100 watts Continuous power rating: 700 watts Cooling: fan cooling, 4 speeds AD/DA: 24 bit, 48 kHz Signal processing: 48 bit HPF/LPF: off, 100, 120 Hz 24 dB/octave DSP presets: D-contour, FOH/main, monitor, off Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins Output connectors: 2 x XLR Idle power consumption: 35 watts
