Heavy-Duty Tongue Wheel for Wheeleez™ Boat Dolly and PWC Dolly 12.  Guide your Dolly with ease, without having to lift and carry excessive tongue weight!  Currently only works with the PWC Dolly 12.

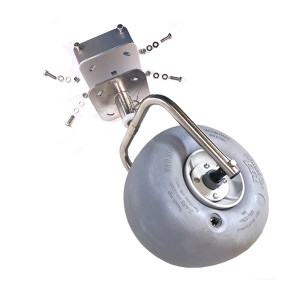

Complete Wheel, Caster and Mounting Bracket Assembly is ready to mount on your dolly.

Includes:Mounting Plate with Lanyard and Hitch Pin attached.

Caster Locking Sleeve (locks swivel).

Caster Fork Assembly.

Wheeleez™ Balloon wheel, 30cm (11.7”) Part# WZ1-30UB.

Mounting Bracket with hardware, caster to tongue.

Specifications:Caster ForkElectro-polished, 316 Marine Grade Stainless Steel construction.

Outside fork width: 29cm (11.4 “), Fork height: 25cm, (10”) wall thickness: 2mmBushing diameter: 35 x 40mm (1.37 x 1.57”) LStem Bolt: 70mm (2.75”) L x 12mm (.47”) dia.

Caster Locking Sleeve: Locks swivelBase PlateElectro-polished, 316 Marine Grade Stainless Steel construction.

Measures: 14 L x 14cm square and 5mm thick (5.5 x 5.5 x .1875″)Bolt hole pattern: 8 x 8cm square (3.1 x 3.1″)Bolt holes: 2 L x 1cm W (.79 x .39″)Stainless Steel Hitch Pin with Lanyard includedMounting Bracket, caster to tongueMarine Grade Anodized Aluminum.

Base Plate measures: 14 L x 14cm square and 5mm thick (5.5 x 5.5 x .1875″)Bolt hole pattern: 8 x 8cm square (3.1 x 3.1″)Bolt holes: 2 L x 1cm W (.79 x .39″)Mounting hardware included:(4) 25 x 8mm bolts(2) 75 x 8mm bolts(6) 8mm Nylock nuts(8) 15mm flat washers(2) Shim Plates for use on Wheeleez™ Boat Dolly tongue.

Maximum Payload: 55 kg (121 lbs.)
