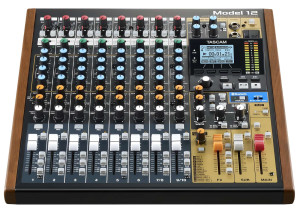

Tascam Model 12 - 10-Channel Mixer with Built-In 12-Track Recorder and USB Audio Interface The Tascam Model 12 is a complete audio workstation combining a 10-channel mixer, 12-track recorder, and USB audio interface, offering unmatched flexibility and performance for musicians, podcasters, and audio creators.

Product Features The Tascam Model 12 features eight mono microphone inputs with Ultra-HDDA preamps for crystal-clear sound. It also offers ten balanced line inputs and a multi-functional stereo channel, making connecting various sound sources easy. Features like a one-knob compressor for all channels, a 3-band EQ with a parametric mid-range, and a built-in effects processor with 16 effect types provide complete sound control.

Applications The Tascam Model 12 is ideal for live recording, studio work, podcasting, and as a USB audio interface for computers. Its versatility makes it suitable for a range of scenarios, from band recordings to electronic music production.

Mixer features10 analogue inputs8 mono mic inputs on XLR connectors with switchable phantom power (48 V)Ultra-HDDA microphone preamps on inputs 1–68 channels can be used with high-impedance instruments like electric guitars/basses10 balanced line inputs (6 mono, 2 stereo)Multi-purpose stereo channel for input from mobile devices via Bluetooth or TRRS smartphone connector (CH 9/10)Inserts on input channels 1 and 2Mix-minus function on smartphone mini-jack input2 Aux outputs (monitor, effects) and 2 stereo outputs with independent master faders (Main, Sub)Monitoring can be selected between PFL (pre-fader), AFL (after-fader) and SIP (solo-in-place)Dedicated click output with tap tempo featureOne-knob compressor for all input channelsThree-band equalizer with sweepable mids for all input channelsSwitchable low-cut filter (100 Hz) on each channelSemi-parametric EQ with sweepable mid band for aux or main outputsBuilt-in Bluetooth receiver for wireless playbackOn-board effects processor16 effects typesCan be used on all input channels, aux busses, sub and main stereo busCan be turned on/off by an optional footswitch (Tascam RC-1F)Compact 60-mm faders12-segment LED output level metersXLR balanced outputs for main stereo busTRS balanced outputs for sub and aux outputsTwo headphones outputs with separate level controlsRecorder featuresTascam multi-track recording engineUses SD cards as storage media (up to 512 GB)Up to 12 tracks (10 input channels + stereo mix) can be recorded without the need for a computerRecording/playback format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)Overdubbing, punch in/out recordingMulti-track playback for advanced live performanceIlluminated Play/Record/Stop buttons for better legibility in poorly lit environmentsAudio interface featuresUSB audio interface for use with Windows (ASIO) and Mac (Core Audio) computersTransfer to computer: 12 channels (all 10 inputs + stereo mix)Transfer from computer: 10 channels, assignable to each channel inputAudio resolution 44.1/48 kHz, 16/24 bitUSB MIDI interface functionSimple DAW control support via HUI/MCU protocol emulationOther featuresMIDI input and outputSupport for MIDI timecode (MTC) and MIDI clock output with song position pointer (SPP)Simple and quick menu operation with multi-jog dial Materials and Construction The Tascam Model 12 features a robust construction and 60-mm faders, ensuring durability and precise sound level control. Included in the Package The package includes the Tascam Model 12 mixer, power supply, USB and MIDI cables, and a user manual.

Summary The Tascam Model 12 is a versatile audio workstation that meets the needs of professionals and enthusiasts, offering advanced recording and mixing features in a compact device.
