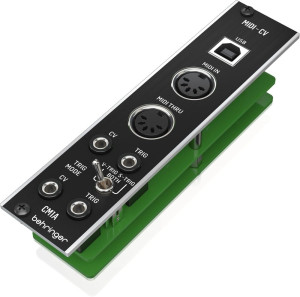

High-Resolution 16-Bit MIDI to CV Converter Module for Eurorack Converts MIDI signals to analog control voltages for modular synthesizers High-resolution 16-Bit Texas Instruments DAC for high resolution and pitch accuracy Enables modular synthesizers to be controlled by a MIDI keyboard, sequencer or DAW Dual trigger outputs can be used to control envelope generators Select between V-trigger, S-trigger or both for maximum flexibility Eurorack specs: 6 HP, 70 mA +12 V, 10 mA -12 V SPECIFICATIONS Outputs CV Type 2 x 3.5 mm TS jack, DC coupled Impedance 100 Ω Max output level -6.3 V to +10 V CV range, System 100, 2500 series mode -1 V to +9 V, 1 V/octave CV range, System 15, 35, 55 mode -5.3 V to +4.7 V, 1 V/octave CV modes Monophonic, duophonic Trig Type 2 x 3.5 mm TS jack, DC coupled Impedance 25 Ω Max output level +5 V when in V-Trig mode,                               S-Trig = pull down to 0 V Trig modes  V-Trig, S-Trig, both: upper = S-Trig, lower = V-Trig MIDI Type  2 x 5-pin DIN              MIDI IN and MIDI THRU               MIDI Channel (1 to 16) set via SynthTribe tool USB Type USB 2.0, Type B Mode select (rear panel)Mode 1, underside LEDs = red/red                                        System 15, 35, 55 CV range, monophonic                                        Mode 2, underside LEDs = green/red                                         System 100, 2500 series CV range, monophonic                                        Mode 3, underside LEDs = red/green                                        System 15, 35, 55 CV range, duophonic                                        Mode 4, underside LEDs = green/green                                        System 100, 2500 series CV range, duophonic Power Power supply  Eurorack Current draw  0 mA (+12 V),                              10 mA (-12 V) Physical Dimensions  30 x 129x 520 mm(1.18 x 5.08 x 20.47") Rack units 6 HP Weight 0.09 kg (0.19 lbs)
