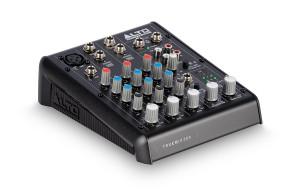

Alto Professional TrueMix 500 Mixer – A Versatile Tool for Audio CreatorsDo you need a compact device that connects your microphone, instruments, and computer into one cohesive system? The Alto Professional TrueMix 500 is a portable analog mixer with a built-in stereo USB interface, providing all the essential features for home recording, live streaming, podcasting, and stage performances.

Product FeaturesThe device is equipped with five analog inputs featuring high headroom circuitry, which translates to minimal noise and no signal clipping even at high volume levels. The microphone channel offers an XLR input perfect for connecting dynamic microphones, as well as a balanced ¼" TRS line input designed for instruments and other line-level sources. Two additional stereo channels are equipped with dual balanced TRS inputs, ideal for line-level sources.

Each channel features a two-band graphic equalizer with color-coded knobs – red for low frequencies and blue for high frequencies – enabling precise sound shaping even in dim stage lighting or studio conditions. Locking buttons ensure setting stability during transport.

Professional Connectivity and Flexible RoutingConnecting the TrueMix 500 to a computer is incredibly fast thanks to the plug and play functionality, which works seamlessly on both Windows and macOS systems. The two-channel USB interface allows for sending stereo signals to the computer and playing audio from the computer back into the mixer.

The routing system offers flexible signal direction options. The 2-track inputs can be assigned to the main mix output or routed directly to the headphone output. The main output uses balanced TRS connectors with a maximum level of +22 dBu, while the headphone output delivers 160 mW at 32 ohms impedance, allowing for comfortable monitoring with various types of headphones.

ApplicationsHome Recording – Recording vocals, acoustic instruments, and electronic instrumentsLive Streaming – Mixing audio sources during broadcasts on platforms such as Twitch, YouTube, or FacebookPodcasting – Professional quality recordings for conversations and interviewsLive Performances – Compact monitor mixing on stageMusic Production – Control over signals from keyboards, synthesizers, and MIDI interfacesTechnical SpecificationsFrequency Response: 20 Hz – 22 kHz (±1 dB)THD+N: Below 0.005% at 4 dBu, 1 kHzDynamic Range (SNR): Above 110 dBMicrophone Gain: 0 – 44 dBChannel 1 Line Gain: 12 – 30 dBuLine Inputs Channels 2/3: 0 dBuMax Gain Mic → Main Out: 74 dBMax Gain Mic → Phones: 80 dBMicrophone Input Impedance: 3.9 kΩImpedance of Other Inputs: Above 10 kΩEqualizer: ±15 dB at 80 Hz (Low) and ±15 dB at 12 kHz (High)18V Phantom Power for Condenser MicrophonesHeadphone Output: 160 mW at 32 ΩPower Supply: 18V DC, 500 mA, Power Consumption 9WMaterials and ConstructionThe Alto TrueMix 500 enclosure features a solid construction in a compact format, ideal for mobile applications. Dimensions of 159.5 × 193 × 66 mm and a weight of just 0.9 kg make the device easy to fit in a laptop bag or a MIDI controller case. The metal chassis protects the electronics from mechanical damage, while rubber feet prevent the mixer from sliding on smooth surfaces.

A power LED and three peak LEDs indicate signal status, while the eight-element LED meter on the main output allows for real-time level monitoring. The package includes additional knob caps for personalizing the appearance.

Package ContentsAlto Professional TrueMix 500 Mixer18V DC Power SupplyAdditional Knob CapsUSB Cable for Computer ConnectionSummaryThe Alto Professional TrueMix 500 is a mixer that combines professional audio parameters with exceptional portability and ease of use. A dynamic range exceeding 110 dB, extremely low harmonic distortion below 0.005%, a precise two-band equalizer, and 18V phantom power functionality make this device a complete tool for audio production. Whether you are recording a podcast at home, streaming live, or mixing a performance on a small stage – this mixer will meet your expectations.
